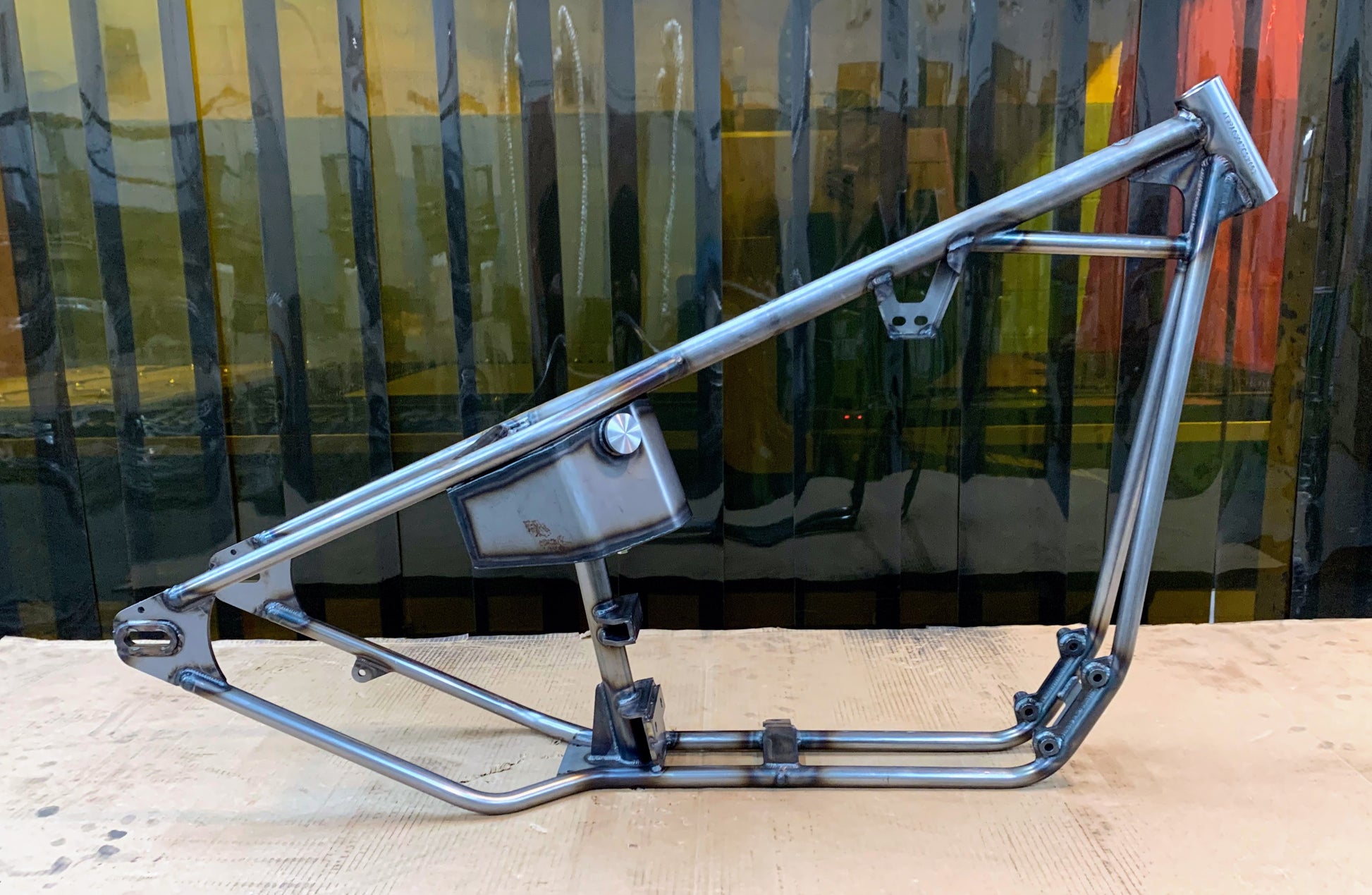

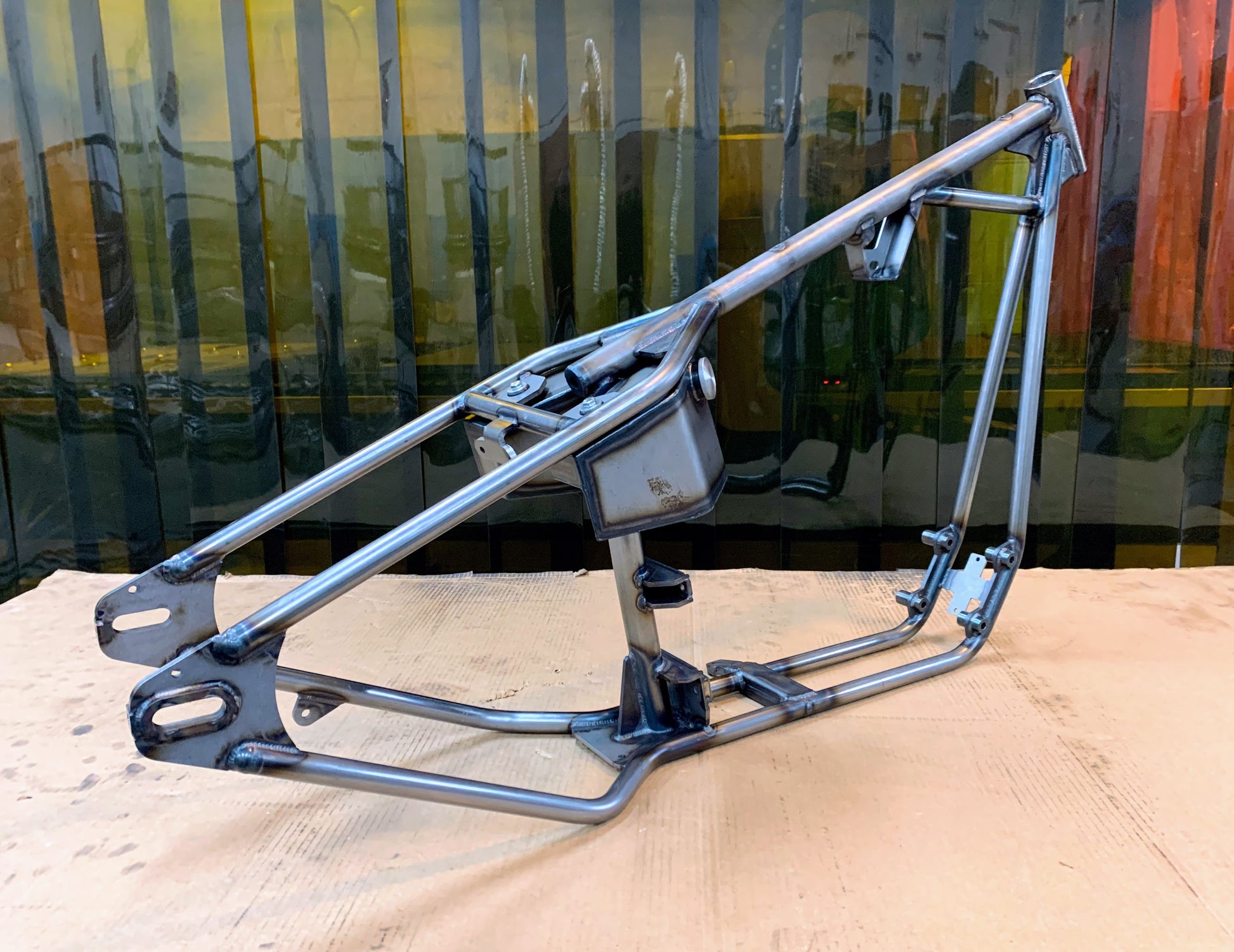

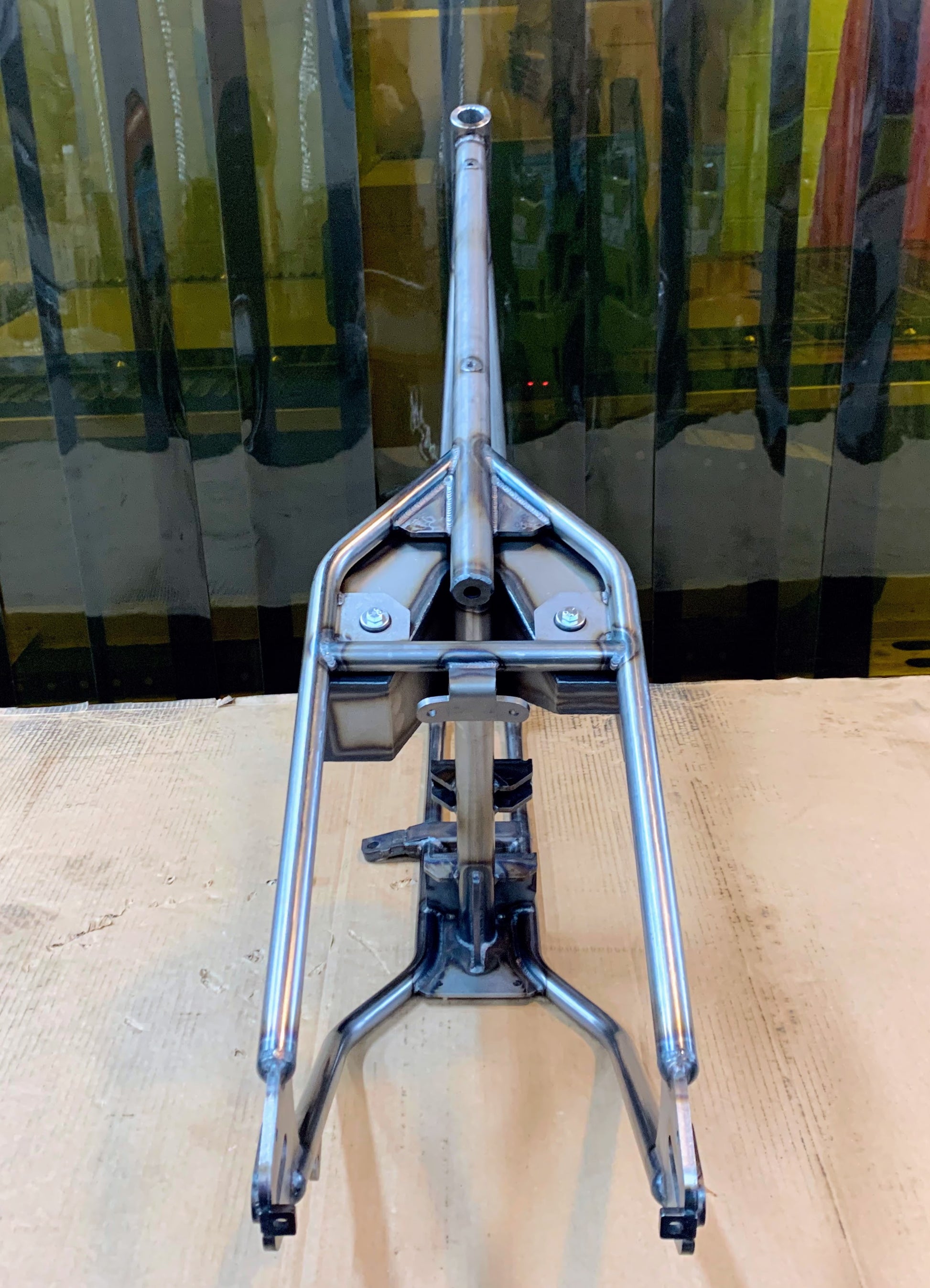

Full rigid frame for 1986-03 Sportster.
CNC bent tubing, TIG weld construction, CNC laser and bent tabs.
Rear of frame is roughly 4” longer than stock with 2” of drop.

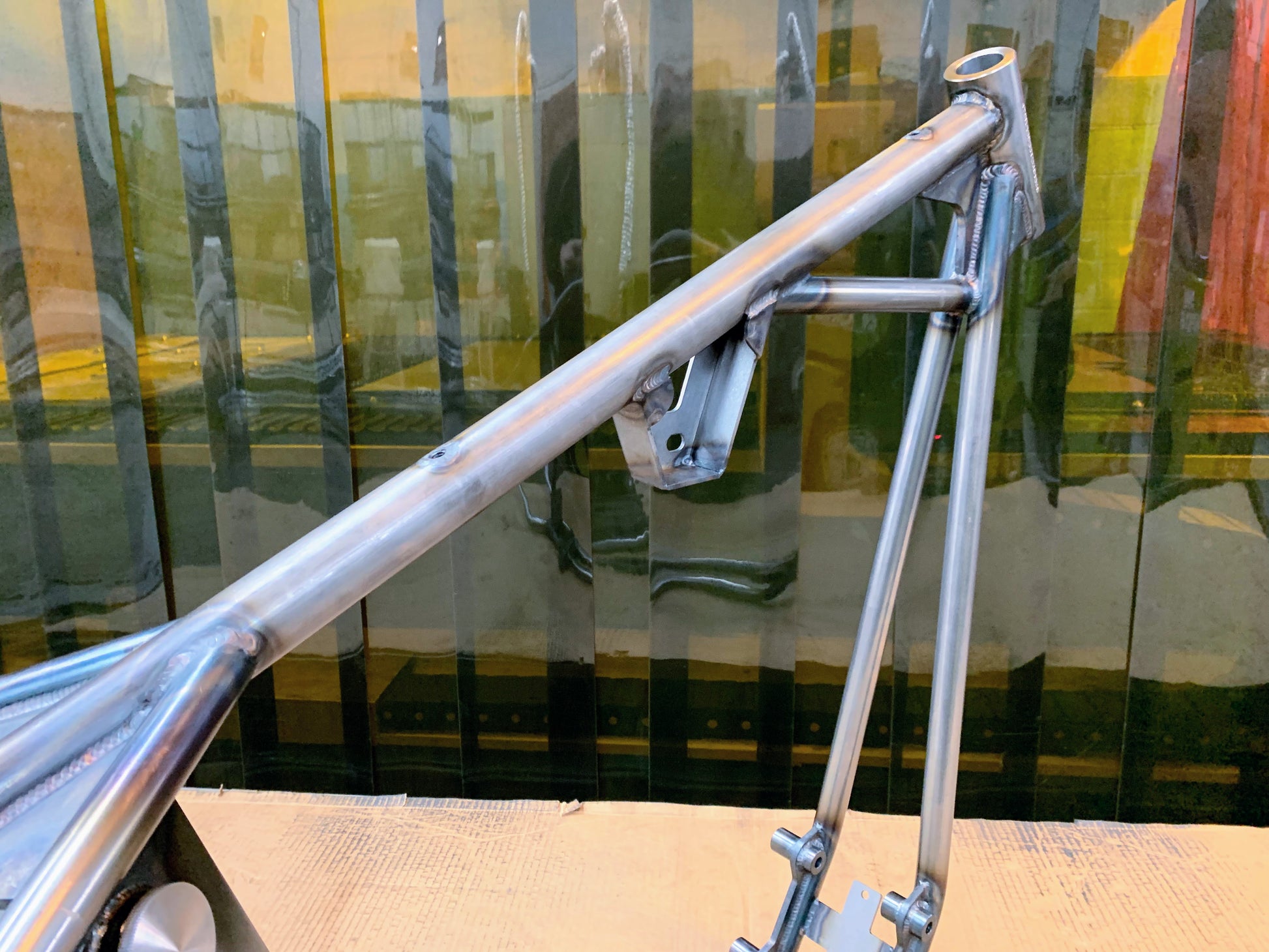

This frame has a neck height of +3" and has 32 degrees of rake for a perfect stance, combined with a 4" over front end and 21" wheel.
Accepts 1” front fork stem and stock 3/4" rear axle.
The frame also has mounts for an early sportster style gas tank and will require an early style kickstand and early style front motor plates (16210-52 or A-22041). Has integrated upper mounts for Horseshoe oil tank #010404.
You can choose to order with standard sportster gas tank mounts or frisco tank mounts. You can also order with the oil tank (010404) mounted. This means the lower oil tank tab is welded onto the frame and the oil tank is installed with all hardware.
MSO included. This is required when changing frames in certain states.
These are built to order. Please allow 3-4 weeks before shipping.
Obtaining a title for a custom vehicle varies from state to state and you should check with your local laws before purchasing. Gasbox is not responsible for your ability to obtain a title in your jurisdiction.
Made 100% in house at The Gasbox.
