The Gasbox

Gasbox full custom rigid frame for Ironheads

Regular price $1,100.00 $0.00 Unit price per

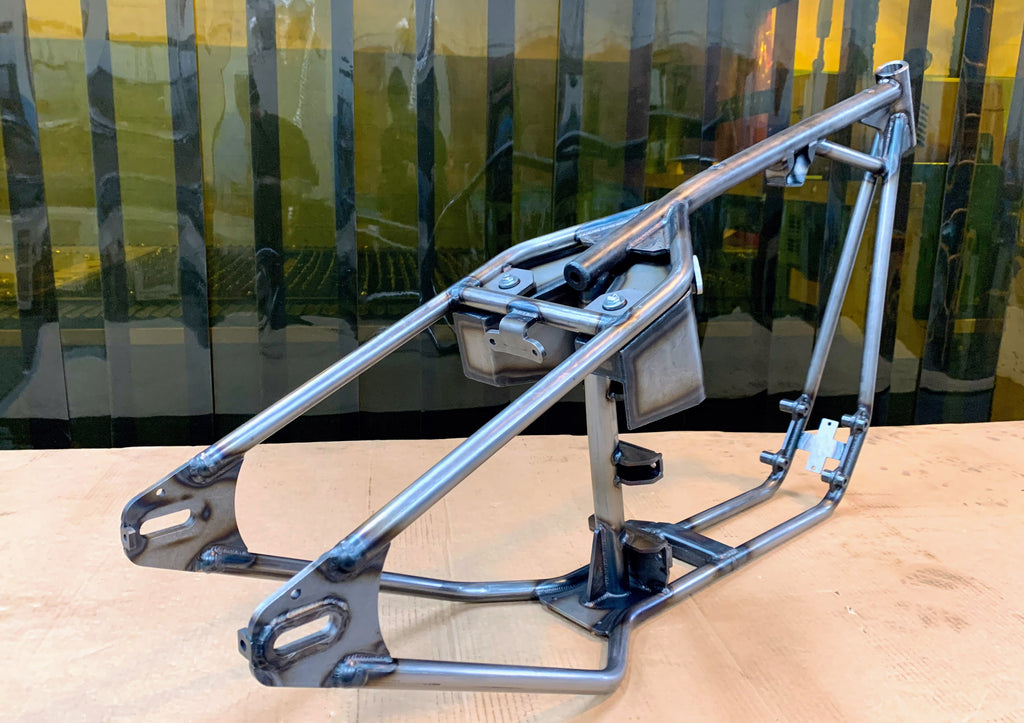

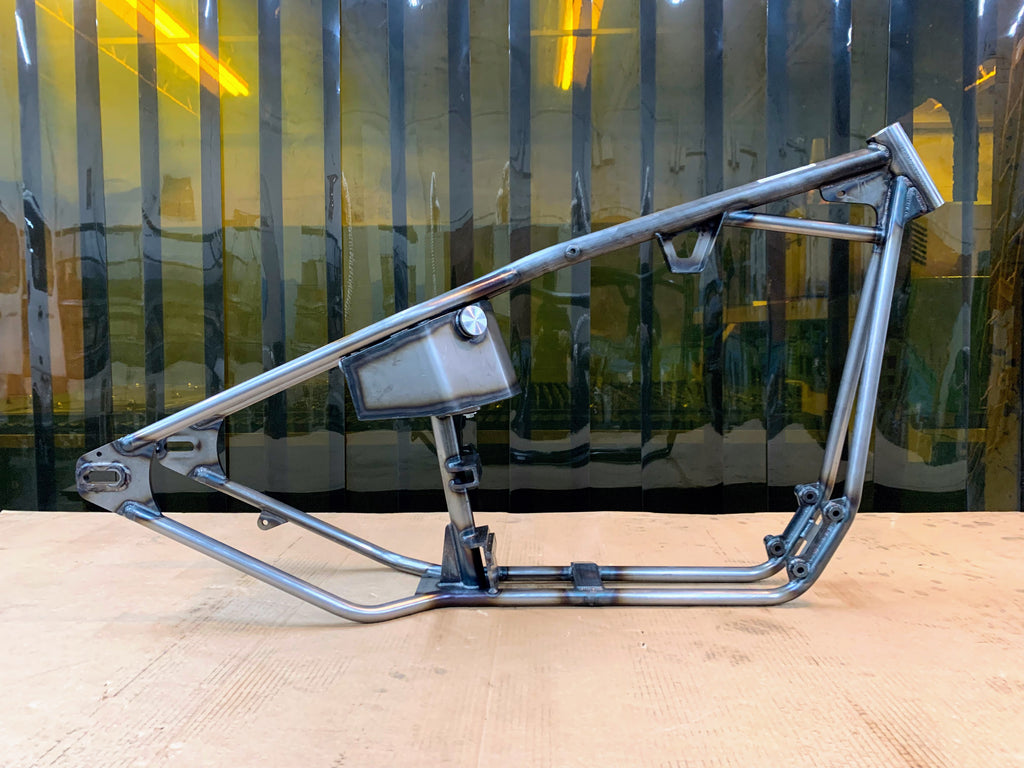

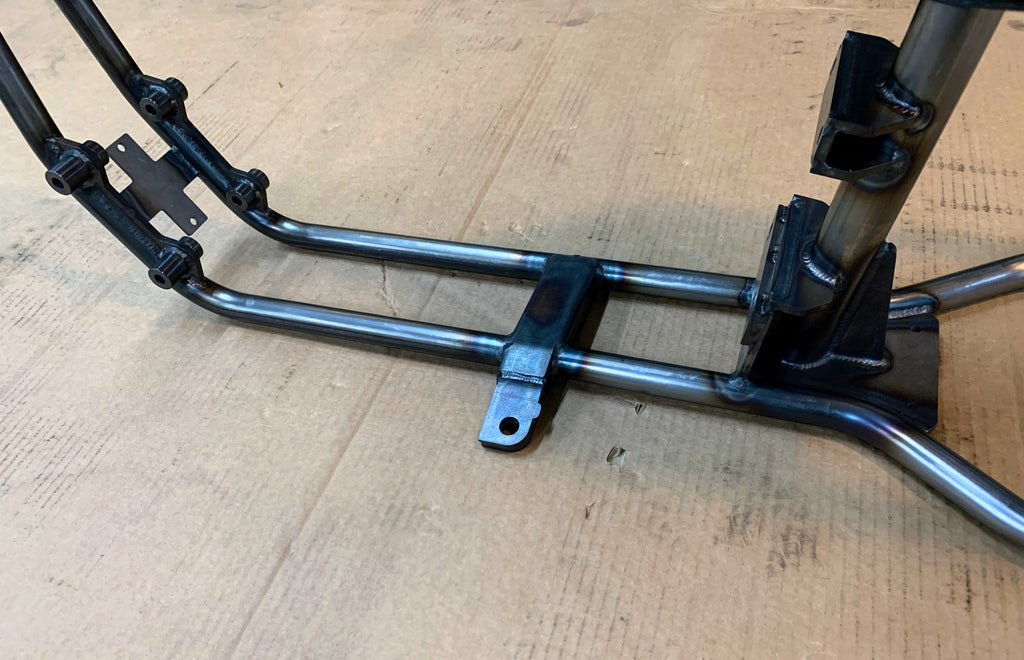

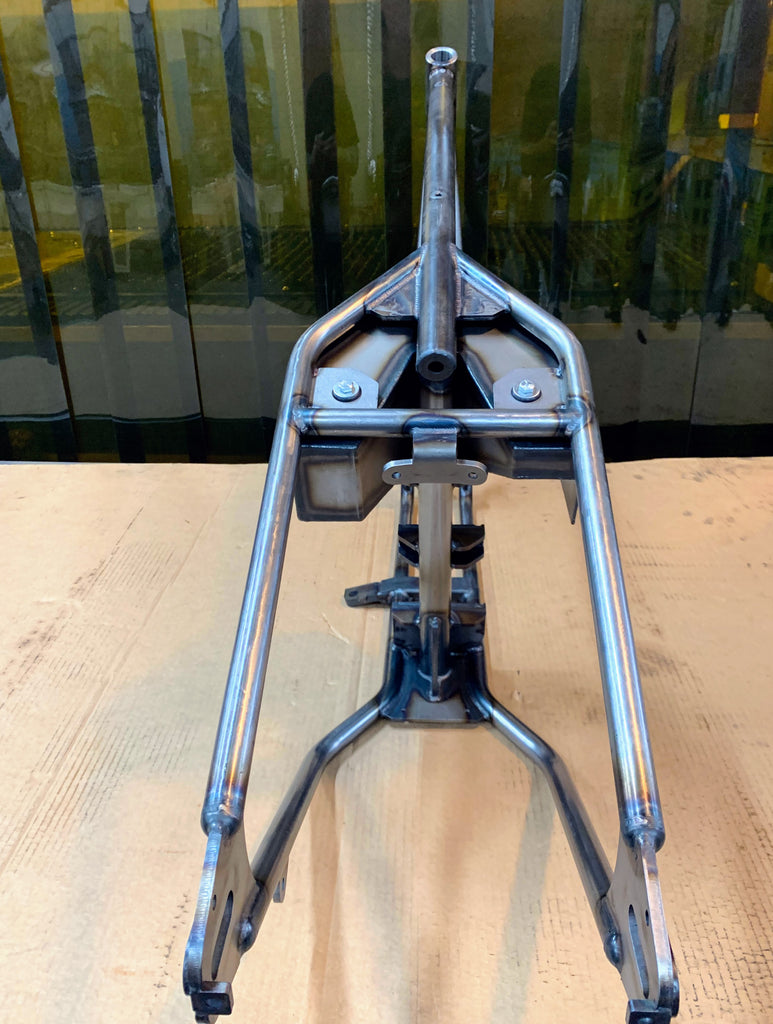

Full Rigid frame for Ironhead's

CNC bent tubing, TIG weld construction, CNC laser and bent tabs.

Rear of frame is roughly 4” longer than stock with 2” of drop.

This frame has a stock neck height and has 32 degrees of rake for a perfect stance with a stock length front end and 21" wheel.

Accepts 1” front fork stem.

Disc brake only rear for 3/4” axle.

The frame also has mounts for a standard early sportster gas tank, early style sportster kickstand, and integrated upper mounts for Horseshoe oil tank #010404

Requires 1957-81 (16210-52) front motor plates and 1967-81 (16203-67) rear cast motor mount. If you have a 1982-85 Model, you will need to change to these motor mounts.

MSO included. This is required when changing frames in certain states.

These are built to order. please allow 7-14 days before shipping.
