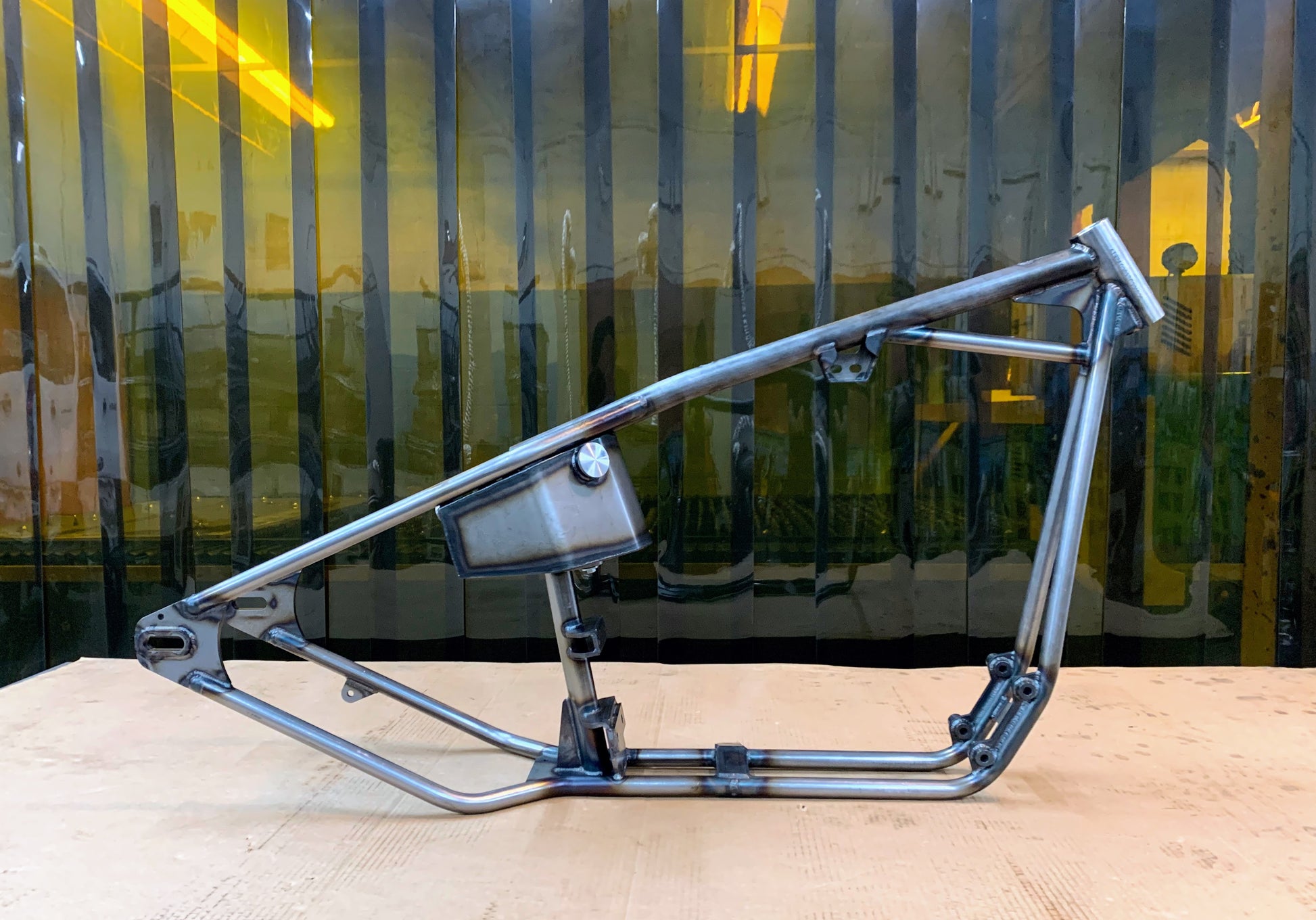

Gasbox Standard Rigid Frame for Evo Sportster's

Full rigid frame for 1986-03 Sportster.

CNC bent tubing, TIG weld construction, CNC laser and bent tabs.

Rear of frame is roughly 4” longer than stock with 2” of drop.

This frame has a stock neck height and has 32 degrees of rake for a perfect stance, combined with a stock front end and 21" wheel.

Accepts 1” front fork stem and stock 3/4" rear axle.

The frame will require an early style kickstand and early style front motor plates (16210-52 or A-22041). Has integrated upper mounts for Horseshoe oil tank #010404.

You can chose to order with standard sportster gas tank mounts or frisco tank mounts. You can also order with the oil tank (010404) mounted. This means the lower oil tank tab is welded onto the frame and the oil tank is installed with all hardware.

MSO included. This is required when changing frames in certain states.

These are built to order. Please allow 7-14 days before it is ready to ship.

Made 100% in house at The Gasbox.

International Shipping is available.

Due to dimensional weight calculations all international orders will ship via DHL Air Freight

Contact us for an accurate shipping quote
